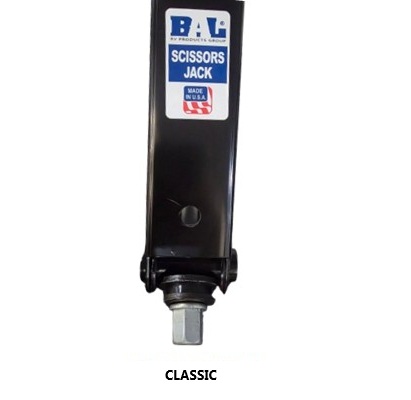

Classic Scissors Jack

Description

Scissors jacks provide fine leveling and stabilizing for travel trailers and fifth wheels. Two models extend from 4″ to 23-3/4″, and one model extends to 30″. Given the broad range of ground-to-frame clearance, there’s a BAL leveling jack for almost every RV.

  • The Deluxe Scissors Jack includes a patented roller-bearing assembly for smooth and easy screw operation.
  • The Standard Scissors Jack provides a sandwich construction bearing design to assist in screw operation.
  • Tooth gear design of the scissor arms ensures straight line vertical extension and retraction.
  • Double lead, acme thread drive screw is designed so the jack raises quickly and the crank handle turns easily.
  • When placed in the handle receiver, the crank handle can be easily rotated, even when tilted.
  • Rust-inhibitive E-coating on the jack and shiny zinc coating on the crank handle ensure long life.
  • Mounting hardware is included; jacks may be welded to trailer frame.
  • U.S. Patents 6,375,161 6,527,251 6,607,181
MODEL TYPE STATIC CAPACITY PER JACK (LBS) LIFT BOXED SET OF 2 W/CRANK HANDLE MODEL TYPE SINGLE JACK ONLY (BULK PK)
24002C STANDARD 5000 24″ 20036
24009 STANDARD 5000 24″
24002D DELUXE 7500 24″ 20037
24010 DELUXE 7500 24″
24001 DELUXE 7500 24″ SINGLE BOXED
24003D DELUXE 5000 30″ 20037
24013 DELUXE 5000 30″

WARNING: Do not use a cordless drill or cordless impact to operate the product unless the drill has an adjustable chuck. If the product was supplied with a manual handle or ratchet, please use that to operate the product. This allows you to feel the resistance during operation. A cordless drill or impact will cause damage to the product unless the adjustable chuck is set appropriately. NEVER use a cordless impact on an electric motor with a manual override.

WARNING: Cancer & Reproductive Harm. www.P65Warnings.ca.gov

Support

How To Select The Right Sized Stabilizer Jack

Leveling Scissors Jacks Brochure

Installation and Operation

Mounting Hole Dimensions

WARNING: Do not use a cordless drill or cordless impact to operate the product unless the drill has an adjustable chuck. If the product was supplied with a manual handle or ratchet, please use that to operate the product. This allows you to feel the resistance during operation. A cordless drill or impact will cause damage to the product unless the adjustable chuck is set appropriately. NEVER use a cordless impact on an electric motor with a manual override.

WARNING: Cancer & Reproductive Harm. www.P65Warnings.ca.gov
